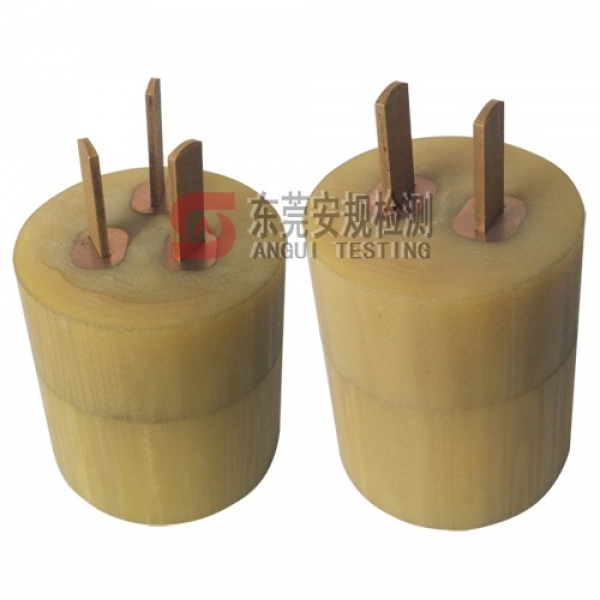

AGGBTRP GB2099.1温升测试插头

AGGBTRP GB2099.1温升测试插头是广东安规根据标准GB2099.1,GB1002的要求设计制作而成。

内容

产品设计：广东安规检测有限公司

设计标准：AGGBTRP GB2099.1温升测试插头是广东安规根据标准GB2099.1,GB1002的要求设计制作而成。

IEC60884-1要求如下：

19.1 Socket-outlets are tested using a test plug with brass pins having the minimum 19.1 Socket-outlets are tested using a test plug with brass pins having the minimum.

The test plug is inserted into the socket-outlet, and an alternating current as specified in Table 20 is passed for 60min.

产品规格：

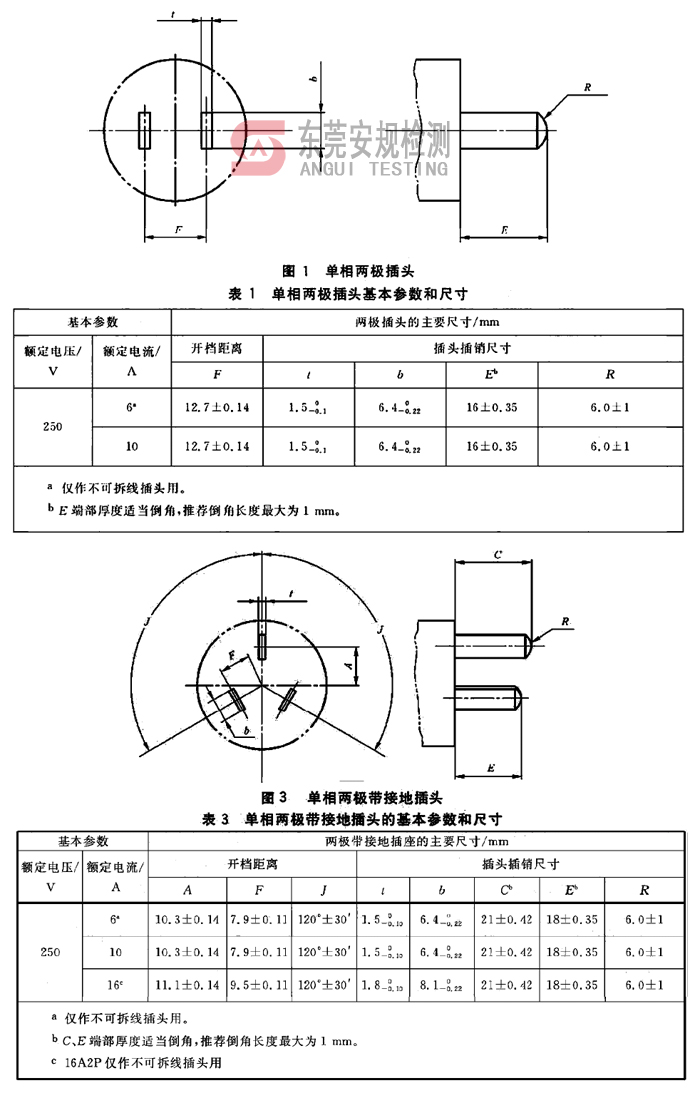

插销使用黄铜，插销具有最小规定尺寸。参考GB1002相关图纸：

AGGBTRP GB2099.1温升测试插头
