产品设计：广东安规检测有限公司

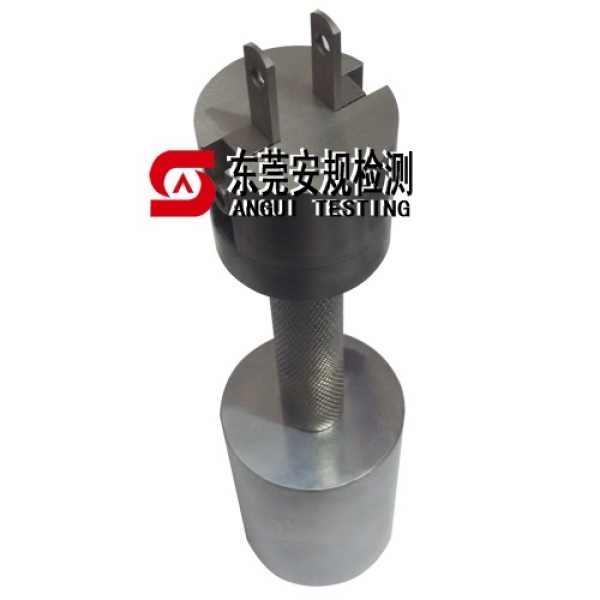

设计标准：AG2-15P 3磅2-15P插座保持力规是广东安规根据标准UL498表93.1的要求设计制作而成。
产品概述：
根据表91.1要求，6-15R和6-20R的插座应当使用2-15P的插头测试。
根据UL498要求，6个连接器应当按表93.1要求的插头连续插拔10次插入拔出无孔插脚后，按表93.1要求，一个重3磅（13N）力施加于垂直结合面对插头在保持一分钟后，位移不应当大于2mm。
根据表93.1要求，6-15R和6-20R的插座应当使用2-15P的插头测试。
93.3 Each of six devices is to be subjected to ten conditioning cycles of insertion and withdrawal of a standard solid-blade attachment plug that has American National Standard detent holes in accordance with Wiring Devices – Dimensional Specifications, ANSI/NEMA WD6, in rigidly mounted blades, following which the plug is to be fully reinserted into the device. The mating plugs are to have the configuration indicated in Table 93.1. A pull of 3 lbf (13 N) in a direction perpendicular to the plane of the face of the cord connector and tending to withdraw the plug from the device is then to be applied to the plug for 1 minute. The displacement of the plug shall not be greater than 0.079 inch (2 mm).
Table 93.1 Mating Plug configurations for plug retention| Device under test | Mating plug | No. of devices tested |
| 1-15R | 1-15P | 6 |
| 5-15R | 1-15P | 6 |
| 5-20R | 1-15P 5-20P(a) | 3 3 |
| 6-15R | 2-15P | 6 |
| 6-20R | 2-15P 6-20P(a) | 3 3 |
| a Shall have the ground blade removed. |
|
|
Exception: Connectors may instead be subjected to the Retention of Blades Test, Section 111.2 and 111.3 (conditioning and 3 lb retention).
